进口凸耳式中线蝶阀描述--
ALSO凸耳式蝶阀通常安装在管路末端做末端阀,由于其稳定的连接性,也常用于热变化频繁的管路上起截断和调节作用
进口凸耳式中线蝶阀结构--
阀杆:采用高強度单杆设计,阀杆与阀板的连接釆用双偏精密咬合设计,无需螺丝和销钉,避免与管线内的流体接触,防止泄露及腐蚀,而且拆卸上只需把阀杆从阀板拔出,安装及维修非常方便
阀座:采用舌槽接合式阀座设计,能够完全把阀体与管内介质隔离,具有更低的扭拒,阀座密封面有凸起O型环,无需在安装时另加法兰垫片
阀杆保持圆环:保持圆环把阀杆固定在阀体内一个推垫圈和“C”型垫片,用专用小工具就可拆卸,可防止阀杆无意拔出
阀杆套:四氟轴套,抗腐蚀,阻尼小,抗压能力强
密封圈:自调式双“U”环形设计的密封圈保证双向零泄露,并防止异物进入阀杆腔内
阀板:铸件边缘经过球面加工和手工抛光,使用寿命长,操作扭矩低,气泡密封双向零泄露
进口凸耳式中线蝶阀特点--
低扭矩、用途广、无泄漏;
大流量、免维护;
斜坡阀座,实现中线蝶阀结构;
带沟槽橡胶靠背,回弹性强;
万能孔,适应各种法兰标准的安装;

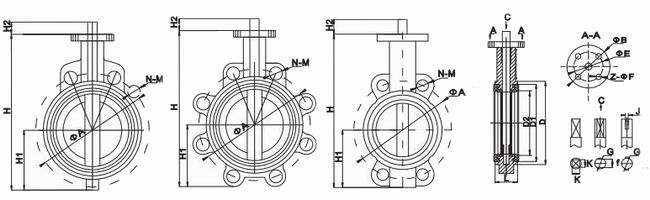

进口凸耳式中线蝶阀外形尺寸--
通径 mm |
L |
国标10/16 |
美标150LB |
日标5K/10K |
|
|||||||||||||
¢A |
N-M |
¢A |
N-M |
¢A |
N-M |
¢B |
H |
H1 |
G*f/K |
J |
H2 |
¢E # |
Z-¢ |
¢D |
¢D1 |
¢D2 |
||
25 |
33 |
85 |
4-12 |
79.5 |
4-14 |
75/90 |
4-10/12 |
55/65 |
140 |
46 |
9.5*7/11 |
/ |
15/27 |
45/50 |
4-5.2/7.5 |
69 |
59 |
34 |
32 |
33 |
100 |
4-16 |
88.9 |
4-14 |
90/100 |
4-12/16 |
55/65 |
140 |
46 |
9.5*7/11 |
/ |
15/27 |
45/50 |
4-5.2/7.5 |
69 |
59 |
34 |
40 |
33 |
110 |
4-16 |
98.5 |
4-14 |
95/105 |
4-12/16 |
55/65 |
147 |
53 |
9.5*7/11 |
/ |
15/27 |
45/50 |
4-5.2/7.5 |
80 |
68 |
44 |
50 |
42 |
125 |
4-16 |
120.7 |
4-16 |
105/120 |
4-12/16 |
65/90 |
195 |
55 |
14*10/11 |
1-3 |
15/27 |
50/70 |
4-7.5/10 |
95 |
82 |
55 |
65 |
44 |
145 |
4-16 |
139.7 |
4-16 |
130/140 |
4-12/16 |
65/90 |
217 |
64 |
14*10/11 |
1-3 |
15/27 |
50/70 |
4-7.5/10 |
114 |
97 |
69 |
80 |
44 |
160 |
8-16 |
152.4 |
4-16 |
145/150 |
4/8-16 |
65/90 |
232 |
73 |
14*10/11 |
1-3 |
15/27 |
50/70 |
4-7.5/10 |
126 |
113 |
81 |
100 |
50 |
180 |
8-16 |
190.5 |
8-16 |
165/175 |
8-16 |
90 |
270 |
88 |
16*11/11 |
1-5 |
20/27 |
70 |
4-10 |
154 |
139 |
108 |
125 |
56 |
210 |
8-16 |
215.9 |
8-20 |
200/210 |
8-16/20 |
90 |
292 |
102 |
19*13/14 |
1-5 |
20/27 |
70 |
4-10 |
180 |
163 |
135 |
150 |
56 |
240 |
8-20 |
241.3 |
8-20 |
230/240 |
8-16/20 |
90 |
318 |
115 |
19*13/14 |
1-5 |
20/27 |
70 |
4-10 |
206 |
195 |
154 |
200 |
60 |
295 |
8-20 12-20 |
298.5 |
8-20 |
280/290 |
8/12-20 |
120/150 |
390 |
149 |
22*16/17 |
1-5 |
25/40 |
102 |
4-12 |
264 |
250 |
205 |
250 |
68 |
350/355 |
12-20 12-24 |
362 |
12-24 |
345/355 |
12-20/22 |
120/150 |
457 |
184 |
30*22/22 |
1-8 |
30/45 |
102 |
4-12 |
320 |
305 |
255 |
300 |
78 |
400/410 |
12-20 12-24 |
431.8 |
12-24 |
390/400 |
12-20/16-22 |
150 |
518 |
207 |
30*22/22 |
1-8 |
30/50 |
102/125 |
4-12/14 |
370 |
352 |
302 |
350 |
78 |
460/470 |
16-20 16-24 |
476.3 |
12-27 |
435/445 |
12/16-22 |
150 |
610 |
247 |
35/27 |
1-8 |
35/55 |
102/125 |
4-12/14 |
430 |
405 |
345 |
400 |
102 |
515/525 |
16-24 16-27 |
539.8 |
16-27 |
495/510 |
16-22/24 |
150/200 |
650 |
275 |
40/27 |
1-10 |
35/64 |
125/140 |
4-14/18 |
480 |
455 |
395 |
450 |
114 |
565/585 |
20-24 20-27 |
577.9 |
16-30 |
555/565 |
16-22/20-24 |
210 |
713 |
307 |
50/36 |
1-12 |
50/80 |
140/165 |
4-18/22 |
550 |
515 |
450 |
500 |
127 |
620/650 |
20-24 20-30 |
635 |
20-30 |
605/620 |
20-22/24 |
210 |
768 |
330 |
50/36 |
1-12 |
50/80 |
165 |
4-22 |
590 |
565 |
500 |
600 |
151 |
725/770 |
20-27 20-33 |
749.3 |
20-33 |
715/730 |
20-24/24-30 |
210 |
919 |
400 |
60/46 |
2-16 |
50/80 |
165 |
4-22 |
695 |
674 |
585 |
700 |
163 |
840 |
24-27 24-33 |
863.6 |
28-33 |
820/840 |
24-24/30 |
300 |
1144 |
520 |
60/46 |
2-18 |
55/82 |
254 |
8-18 |
787 |
760 |
705 |
800 |
190 |
950 |
24-30 24-36 |
977.9 |
28-39 |
830/850 |
24/28-30 |
300 |
1263 |
591 |
60/46 |
2-20 |
55/82 |
254 |
8-18 |
905 |
878 |
810 |
900 |
203 |
1050 |
28-30 28-36 |
1085.8 |
32-39 |
1030/1050 |
24/28-30 |
300 |
1376 |
656 |
75/55 |
2-22 |
55/118 |
254 |
8-18 |
970 |
955 |
885 |
