进口塑料球阀描述--
ALSO塑料球阀采用浮动式结构,旋转杆带球体,独特的弹性唇式密封阀座,具有高密封性能和扭拒轻的功能。
进口塑料球阀UPVC性能特点--
1.价格低,材料费用低,安装成本低,不同的工程降低比例不同
2.材料轻,搬运、安装方便,节约时间及费用。
3.耐腐蚀
4.耐老化,化学稳定性好
5.管壁光洁,流体阻力小,无污染不滋生细菌
6.综合性能高,管件不传热,不导电,阻燃,机械强度高,适应性广。
进口塑料球阀CPVC性能特点--
1、耐腐蚀性能强
CPVC管道无论是在酸,碱盐、氧化的环境中,暴露在空气中,埋于腐蚀性土壤里,甚至在95°C的高温下,内外均不会被腐蚀,仍像最初安装一样坚固、可靠;
2、管道光洁
CPVC管道表面光洁,输送液体时具有较小的摩擦力,细菌及水垢亦不易生长和附着;
3、坚固耐压
CPVC比聚烯烃材料坚固,故所需卡箍、支架亦少。相同压力下,管道的管径比聚烯烃管小而达到同样流量,节省材料和安装时间:
4、良好的阻燃性
CPVC的限氧指数为60,管道不自然且不助燃,还具有限制烟雾的特性,不会产生有毒气体;
5、保温性能佳,热膨胀小
CPVC热传倒率低,冬天可节省大部分保温材料及施工费用,也不会扭曲变形;
6、抗震性好
CPVC管道具有较好的弹性模量,抗震并能大大降低水锤效应;
7、耐老化性优异
CPVC管道具有优异的耐老化性的抗紫外线性能,使其正常使用寿命比其它管道系统均有很大延长;
8、施工简易
CPVC管道比重小,连接方式与PVC相同,无需其他材料的配件;

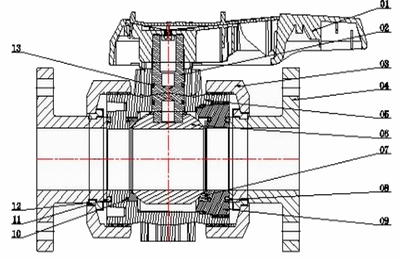

进口塑料球阀参数--
No. | 部件 | 数量 | 材料 | |
01 | 手柄 | 1 | PVC-U/PP+GF30% | |
02 | 连接杆 | 1 | PVC-U/PVC-C | |
03 | 螺帽 | 2 | PVC-U/PVC-C | |
04 | 一体法兰 | 2 | PVC-U/PVC-C | |
05 | 阀体 | 1 | PVC-U/PVC-C | |
06 | 球心 | 1 | PVC-U/PVC-C | |
07 | 止泻圈 | 2 | PTFE/TPE+PP | |
08 | O型圈1 | 2 | EPDM/FPM | |
09 | 调节单盖 | 1 | PVC-U/PVC-C | |
10 | O型圈2 | 2 | EPDM/FPM | |
11 | O型圈3 | 1 | EPDM/FPM | |
12 | 固定卡环 | 2 | PVC-U/PVC-C | |
13 | O型圈4 | 2 | EPDM/FPM |
进口塑料球阀结构尺寸

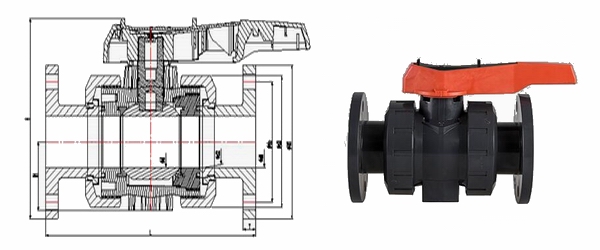

法兰塑料球阀外形尺寸
DIN德标尺寸(mm) | 工作压力 (kg/c㎡) |
||||||||||
SizeDN(De) | D0 | d0 | d1 | d2 | d3 | d | H1 | H | T | L | |
15(20) | 95.00 | 65.00 | 20.30 | 19.95 | 51.50 | 15.50 | 26.30 | 103.90 | 13.00 | 143.00 | 10 |
20(25) | 105.00 | 75.00 | 25.30 | 24.95 | 59.00 | 20.50 | 30.60 | 114.66 | 14.00 | 172.00 | 10 |
25(32) | 115.00 | 85.00 | 32.30 | 31.90 | 70.00 | 26.00 | 39.10 | 127.56 | 15.00 | 187.00 | 10 |
32(40) | 140.00 | 100.00 | 40.35 | 39.90 | 85.40 | 33.00 | 44.20 | 157.51 | 15.00 | 190.00 | 10 |
40(50) | 150.00 | 110.00 | 50.35 | 49.90 | 98.90 | 39.00 | 52.20 | 166.00 | 17.00 | 212.00 | 10 |
50(63) | 165.00 | 125.00 | 63.40 | 62.90 | 122.20 | 51.00 | 71.30 | 197.50 | 17.00 | 234.00 | 10 |
65(75) | 185.00 | 145.00 | 75.40 | 74.90 | 158.60 | 64.00 | 82.80 | 241.20 | 18.00 | 290.00 | 10 |
80(90) | 200.00 | 160.00 | 90.50 | 89.90 | 192.10 | 81.00 | 99.30 | 261.20 | 18.00 | 310.00 | 10 |
100(110) | 220.00 | 180.00 | 110.60 | 109.90 | 223.60 | 99.00 | 115.20 | 286.68 | 18.00 | 37mcc | 10 |
ASTM美标尺寸(mm) | 工作压力 (kg/c㎡) |
||||||||||
Size(") | D0 | d0 | d1 | d2 | d3 | d | H1 | H | T | L | |
1/2" | 95.00 | 70.00 | 22.40 | 19.95 | 51.50 | 15.50 | 26.30 | 103.90 | 13.00 | 143.00 | 10 |
3/4" | 100.00 | 75.00 | 26.45 | 24.95 | 59.00 | 20.50 | 30.60 | 114.66 | 14.00 | 172.00 | 10 |
1" | 125.00 | 90.00 | 32.55 | 31.90 | 70.00 | 26.00 | 39.10 | 127.56 | 15.00 | 187.00 | 10 |
1-1/4" | 135.00 | 100.00 | 38.60 | 39.90 | 85.40 | 33.00 | 44.20 | 157.51 | 15.00 | 190.00 | 10 |
1-1/2" | 140.00 | 105.00 | 48.70 | 49.90 | 98.90 | 39.00 | 52.20 | 166.00 | 17.00 | 212.00 | 10 |
2" | 155.00 | 120.00 | 60.80 | 62.90 | 122.20 | 51.00 | 71.30 | 197.50 | 19.00 | 234.00 | 10 |
2-1/2" | 175.00 | 140.00 | 76.80 | 74.90 | 158.60 | 64.00 | 82.80 | 241.20 | 20.00 | 290.00 | 10 |
3" | 185.00 | 150.00 | 89.60 | 89.90 | 192.10 | 81.00 | 99.30 | 261.20 | 20.50 | 310.00 | 10 |
4" | 210.00 | 175.00 | 114.70 | 109.90 | 223.60 | 99.00 | 115.20 | 286.68 | 21.00 | 372.00 | 10 |
JIS日标尺寸(mm) | 工作压力 (kg/c㎡) |
||||||||||
Size DN(De) | D0 | d0 | d1 | d2 | d3 | d | H1 | H | T | L | |
15(20) | 95.00 | 70.00 | 22.40 | 19.95 | 51.50 | 15.00 | 26.30 | 103.90 | 15.00 | 145.00 | 10 |
20(25) | 100.00 | 75.00 | 26.45 | 24.95 | 59.00 | 20.00 | 30.60 | 114.66 | 15.00 | 175.00 | 10 |
25(32) | 125.00 | 90.00 | 32.55 | 31.90 | 70.00 | 25.00 | 39.10 | 127.56 | 15.00 | 190.00 | 10 |
32(40) | 135.00 | 100.00 | 38.60 | 39.90 | 85.40 | 30.00 | 44.20 | 157.51 | 16.00 | 195.00 | 10 |
40(50) | 140.00 | 105.00 | 48.70 | 49.90 | 98.90 | 40.00 | 52.20 | 166.00 | 17.00 | 220.00 | 10 |
50(63) | 155.00 | 120.00 | 60.80 | 62.90 | 122.20 | 50.00 | 71.30 | 197.50 | 21.00 | 234.00 | 10 |
65(75) | 175.00 | 140.00 | 76.80 | 74.90 | 158.60 | 63.00 | 82.80 | 241.20 | 23.00 | 300.00 | 10 |
80(90) | 185.00 | 150.00 | 89.60 | 89.90 | 192.10 | 80.00 | 99.30 | 261.20 | 23.50 | 320.00 | 10 |
100(110) | 210.00 | 175.00 | 114.70 | 109.90 | 223.60 | 100.00 | 115.20 | 286.68 | 23.50 | 387.00 | 10 |

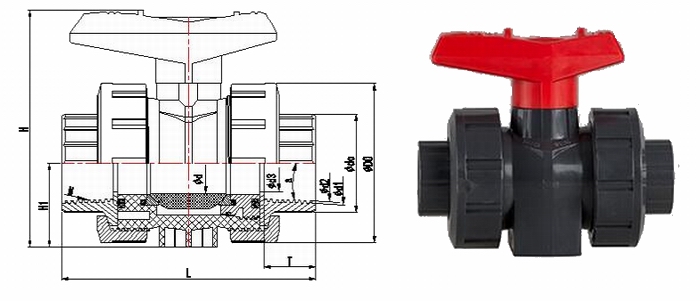

双由令塑料球阀外形尺寸
DIN德标尺寸(mm) | 工作压力 (kg/c㎡) |
||||||||||||
Size DN(De) | D0 | d0 | d1 | d2 | d3 | d | H1 | H | T | L | M | a° | |
15(20) | 51.50 | 30.43 | 20.95 | 18.63 | 16.00 | 15.50 | 26.30 | 82.80 | 17.00 | 95.50 | 1/2" | 3.58 | 10 |
20(25) | 59.00 | 36.30 | 26.44 | 24.12 | 20.60 | 20.50 | 30.60 | 92.80 | 19.50 | 109.10 | 3/4" | 3.58 | 10 |
25(32) | 70.00 | 44.61 | 33.25 | 30.29 | 26.00 | 26.00 | 39.10 | 109.20 | 23.00 | 122.60 | 1" | 3.58 | 10 |
32(40) | 85.40 | 53.87 | 41.91 | 38.95 | 33.00 | 33.00 | 44.20 | 131.80 | 27.00 | 147.30 | 1-1/4" | 3.58 | 10 |
40(50) | 98.90 | 61.12 | 47.80 | 44.85 | 39.00 | 39.00 | 52.20 | 143.20 | 32.00 | 158.80 | 1-1/2" | 3.58 | 10 |
50(63) | 122.20 | 73.83 | 59.61 | 56.66 | 51.00 | 51.00 | 71.30 | 175.70 | 38.50 | 182.80 | 2" | 3.58 | 10 |
65(75) | 158.60 | 87.71 | 75.18 | 74.23 | 64.00 | 64.00 | 82.80 | 231.50 | 44.50 | 234.00 | 2-1/2" | 3.58 | 10 |
80(90) | 192.10 | 106.81 | 87.88 | 84.93 | 81.00 | 81.00 | 99.30 | 260.60 | 52.00 | 255.00 | 3" | 3.58 | 10 |
100(110) | 223.60 | 133.46 | 113.03 | 110.07 | 99.00 | 99.00 | 115.20 | 292.10 | 62.00 | 297.00 | 4" | 3mb | 10 |
ASTM美标尺寸(mm) | 工作压力 (kg/c㎡) |
||||||||||||
Size(") | D0 | d0 | d1 | d2 | d3 | d | H1 | H | T | L | M | a° | |
1/2" | 51.50 | 30.43 | 20.95 | 18.63 | 16.00 | 15.50 | 26.30 | 82.80 | 17.00 | 95.50 | 1/2" | 3.58 | 10 |
3/4" | 59.00 | 36.30 | 26.44 | 24.12 | 20.60 | 20.50 | 30.60 | 92.80 | 19.50 | 109.10 | 3/4" | 3.58 | 10 |
1" | 70.00 | 44.61 | 33.25 | 30.29 | 26.00 | 26.00 | 39.10 | 109.20 | 23.00 | 122.60 | 1" | 3.58 | 10 |
1-1/4" | 85.40 | 53.87 | 41.91 | 38.95 | 33.00 | 33.00 | 44.20 | 131.80 | 27.00 | 147.30 | 1-1/4" | 3.58 | 10 |
1-1/2" | 98.90 | 61.12 | 47.80 | 44.85 | 39.00 | 39.00 | 52.20 | 143.20 | 32.00 | 158.80 | 1-1/2" | 3.58 | 10 |
2" | 122.20 | 73.83 | 59.61 | 56.66 | 51.00 | 51.00 | 71.30 | 175.70 | 38.50 | 182.80 | 2" | 3.58 | 10 |
2-1/2" | 158.60 | 87.71 | 75.18 | 74.23 | 64.00 | 64.00 | 82.80 | 231.50 | 44.50 | 234.00 | 2-1/2" | 3.58 | 10 |
3" | 192.10 | 106.81 | 87.88 | 84.93 | 81.00 | 81.00 | 99.30 | 260.60 | 52.00 | 255.00 | 3" | 3.58 | 10 |
4" | 223.60 | 133.46 | 113.03 | 110.07 | 99.00 | 99.00 | 115.20 | 292.10 | 62.00 | 297.00 | 4" | 3.58 | 10 |
插口式塑料球阀外形尺寸
DIN美标尺寸(mm) | 工作压力 (kg/c㎡) |
|||||||||
Size DN(De) | D0 | d0 | d1 | d2 | d | T | H1 | H | L | |
15(20) | 51.50 | 27.40 | 20.30 | 19.95 | 15.50 | 17.00 | 26.30 | 82.80 | 95.50 | 10 |
20(25) | 59.00 | 32.70 | 25.30 | 24.95 | 20.50 | 19.50 | 30.60 | 92.80 | 109.10 | 10 |
25(32) | 70.00 | 41.30 | 32.30 | 31.90 | 26.00 | 23.00 | 39.10 | 109.20 | 122.60 | 10 |
32(40) | 85.40 | 49.60 | 40.35 | 39.90 | 33.00 | 27.00 | 44.20 | 131.80 | 147.30 | 10 |
40(50) | 98.90 | 60.20 | 50.35 | 49.90 | 39.00 | 32.00 | 52.20 | 143.20 | 158.80 | 10 |
50(63) | 122.20 | 76.00 | 63.40 | 62.90 | 51.00 | 38.50 | 71.30 | 175.70 | 182.80 | 10 |
65(75) | 158.60 | 89.60 | 75.40 | 74.90 | 64.00 | 44.50 | 82.80 | 231.50 | 234.00 | 10 |
80(90) | 192.10 | 105.40 | 90.50 | 89.90 | 81.00 | 52.00 | 99.30 | 260.60 | 255.00 | 10 |
100(110) | 223.60 | 128.40 | 110.60 | 109.90 | 99.00 | 62.00 | 115.20 | 292.10 | 297.00 | 10 |
ASTM美标尺寸(mm) | 工作压力(kg/c㎡) | |||||||||||
Size(*") | D0 | d0 | d1 | d2 | d3 | d | H1 | H | T | L | M | |
1/2" | 51.50 | 30.43 | 20.95 | 18.63 | 16.00 | 15.50 | 26.30 | 82.80 | 17.00 | 95.50 | 1/2" | 10 |
3/4" | 59.00 | 36.30 | 26.44 | 24.12 | 20.60 | 20.50 | 30.60 | 92.80 | 19.50 | 109.10 | 3/4" | 10 |
1" | 70.00 | 44.61 | 33.25 | 30.29 | 26.00 | 26.00 | 39.10 | 109.20 | 23.00 | 122.60 | 1" | 10 |
1-1/4" | 85.40 | 53.87 | 41.91 | 38.95 | 33.00 | 33.00 | 44.20 | 131.80 | 27.00 | 147.30 | 1-1/4" | 10 |
1-1/2" | 98.90 | 61.12 | 47.80 | 44.85 | 39.00 | 39.00 | 52.20 | 143.20 | 32.00 | 158.80 | 1-1/2" | 10 |
2" | 122.20 | 73.83 | 59.61 | 56.66 | 51.00 | 51.00 | 71.30 | 175.70 | 38.50 | 182.80 | 2" | 10 |
2-1/2" | 158.60 | 87.71 | 75.18 | 74.23 | 64.00 | 64.00 | 82.80 | 231.50 | 44.50 | 234.00 | 2-1/2" | 10 |
3" | 192.10 | 106.81 | 87.88 | 84.93 | 81.00 | 81.00 | 99.30 | 260.60 | 52.00 | 255.00 | 3" | 10 |
4" | 223.60 | 133.46 | 113.03 | 110.07 | 99.00 | 99.00 | 115.20 | 292.10 | 62.00 | 297.00 | 4" | 10 |
