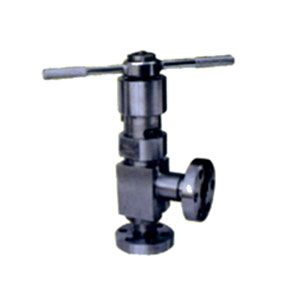

J44H高压角式截止阀、节流阀性能与规范
| 公称压力 | 16 | 32 | Mpa |
| 壳体试验 | 24 | 48 | |
| 密封试验 | 17.6 | 35.2 | |
| 气密封试验 | 0.5-0.7 | ||
| 适用介质 | C | P | R |
| 水、油品、蒸汽 | 氮氢混合气 | 碱液、液氨 | |
| 适用温度（℃） | ≤200 | ||
J44H高压角式截止阀、节流阀重要连接与形状尺寸：
| 型 号 | 通径 DN（mm） | 重要连接尺寸 | 形状尺寸 | ||||||||
| L | D | D1 | M | D2 | b | Z-фd | LO | H | H1 | ||
| AJ44H-320 AL44H-320 | 3 | 60 | 70 | 42 | M14×1.5 | 10 | 15 | 3-16 | 100 | 71 | 77 |
| 6 | 60 | 70 | 42 | M14×1.5 | 10 | 15 | 3-16 | 150 | 80 | 94 | |
| J44Y-160 L44Y-160 | 10 | 90 | 95 | 60 | M24×2 | 10 | 20 | 3-18 | 200 | 260 | 275 |
| 15 | 105 | 95 | 60 | M24×2 | 16 | 20 | 3-18 | 200 | 268 | 288 | |
| J44Y-320 L44Y-320 | 10 | 90 | 95 | 60 | M24×2 | 10 | 20 | 3-18 | 200 | 268 | 275 |
| 15 | 105 | 105 | 68 | M33×2 | 17 | 20 | 3-18 | 200 | 268 | 288 | |
| J44Y-160 L44Y-160 | 25 | 120 | 102 | 68 | M33×2 | 28 | 20 | 3-18 | 300 | 225 | 245 |
| 32 | 135 | 115 | 80 | M42×2 | 37 | 22 | 4-18 | 300 | 222 | 248 | |
| 40 | 165 | 165 | 115 | M52×2 | 47 | 28 | 6-26 | 350 | 265 | 300 | |
| 50 | 190 | 165 | 115 | M64×3 | 59 | 32 | 6-26 | 400 | 303 | 345 | |
| J44Y-320 L44Y-320 | 25 | 120 | 115 | 80 | M42×2 | 35 | 22 | 4-18 | 300 | 225 | 245 |
| 32 | 135 | 135 | 95 | M48×2 | 41 | 25 | 4-22 | 300 | 222 | 248 | |
| 40 | 165 | 165 | 115 | M64×3 | 58 | 32 | 6-26 | 350 | 265 | 300 | |
| 50 | 190 | 200 | 145 | M80×3 | 70 | 40 | 6-29 | 400 | 303 | 345 | |
| GJ44H-160 GL44H-160 | 65 | 215 | 200 | 145 | M80×3 | 73 | 40 | 6-29 | 710 | 430 | 490 |
| 80 | 260 | 225 | 170 | M100×3 | 93 | 50 | 6-33 | 810 | 520 | 600 | |
| 100 | 290 | 260 | 195 | M125×4 | 115 | 60 | 6-36 | 850 | 595 | 685 | |
| GJ44H-320 GHJ44H-320 | 65 | 215 | 225 | 170 | M100×3 | 90 | 50 | 6-33 | 710 | 430 | 490 |
| 80 | 260 | 260 | 195 | M125×4 | 112 | 60 | 6-36 | 810 | 520 | 600 | |
| 100 | 290 | 300 | 235 | M155×4 | 130 | 75 | 8-39 | 850 | 595 | 285 | |
