J65/565/965 H/Y铸钢直流式自紧密封截止阀
设计与制造标准：
●设计与制造：BS1873 BS5160 GB12233
●法兰尺寸：ANSIB16.5 JB/T79 GB9113
●压力温度：ANSIB16.34
●结构长度：ANSIB16.10 BS1873 GB12221
●对焊连接尺寸：ANSIB16.25
●检验与实验：BS6755 GB/T13927

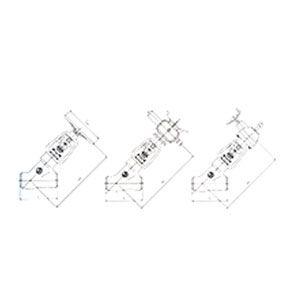

安装尺寸及重量：
| J65Y 1500Lb | J65Y 2500Lb | |||||||||||||
| NPS | 21/2 | 3 | 4 | 5 | 6 | 2 | 21/2 | 3 | 4 | |||||
| L | 330 | 368 | 457 | 533 | 610 | 310 | 340 | 390 | 480 | |||||
| H | 670 | 750 | 830 | 910 | 1100 | 550 | 670 | 750 | 830 | |||||
| D0 | 360 | 460 | 510 | 560 | 610 | 300 | 360 | 460 | 720 | |||||
| Wt | 45 | 70 | 110 | 129 | 180 | 42 | 72 | 81 | 130 | |||||
| J965Y 1500Lb | J965Y 2000Lb | |||||||||||||
| NPS | 3 | 4 | 5 | 6 | 8 | 4 | 5 | 6 | 8 | 10 | 12 | |||
| L | 64 | 84 | 100 | 126 | 158 | 80 | 96 | 118 | 148 | 180 | 222 | |||
| H | 990 | 990 | 1115 | 1765 | 2025 | 990 | 1115 | 1425 | 1615 | 2240 | 2490 | |||
| Wt | 200 | 310 | 514 | 534 | 950 | 327 | 408 | 470 | 1050 | 1582 | 2340 | |||
| ★ | 1000 | 1200 | 1800 | 2500 | 3500 | 1200 | 1800 | 2500 | 3500 | 5000 | 6500 | |||
| J965Y 2500Lb | J965Y 3500Lb | |||||||||||||
| NPS | 2 | 21/2 | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | 3 | 4 | 5 | 6 |
| L | 38 | 46 | 54 | 70 | 86 | 104 | 130 | 162 | 210 | 234 | 48 | 60 | 74 | 88 |
| H | 810 | 895 | 995 | 990 | 1115 | 1280 | 1615 | 1930 | 2240 | 2420 | 1005 | 1135 | 1280 | 1320 |
| Wt | 130 | 160 | 217 | 337 | 432 | 652 | 1122 | 1652 | 2862 | 3662 | 272 | 387 | 582 | 847 |
| ★ | 900 | 900 | 1200 | 1800 | 1800 | 3500 | 4000 | 5000 | 6500 | 6500 | 1200 | 1200 | 1800 | 1800 |
| J565Y 2500Lb | J565Y 3500Lb | |||||||||||||
| NPS | 5 | 6 | 8 | 4 | 5 | 6 | 8 | 10 | 12 | |||||
| L | 533 | 610 | 762 | 457 | 533 | 610 | 762 | 914 | 1041 | |||||
| H | 1100 | 1730 | 2010 | 870 | 995 | 1025 | 1505 | 1825 | 2300 | |||||
| Wt | 505 | 520 | 820 | 214 | 303 | 470 | 980 | 1280 | 2714 | |||||
| ★ | 1800 | 2500 | 3500 | 1200 | 1800 | 2500 | 3500 | 5000 | 6500 | |||||
| J565Y 1500Lb | J565Y 2000Lb | |||||||||||||
| NPS | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | 3 | 4 | 5 | 6 | ||
| L | 390 | 480 | 580 | 630 | 770 | 930 | 1060 | 1160 | 470 | 550 | 660 | 790 | ||
| H | 750 | 870 | 995 | 1205 | 1565 | 1870 | 2335 | 2515 | 815 | 930 | 1075 | 1220 | ||
Wt | 121 | 212 | 312 | 410 | 1060 | 1380 | 2824 | 3624 | 172 | 293 | 462 | 727 | ||
| ★ | 1200 | 1800 | 1800 | 3500 | 4000 | 5000 | 6500 | 6500 | 1200 | 1200 | 1800 | 1800 | ||
注：H、Wt为图示情势的参考数据。★为伞齿轮、电动装配的参考力矩，单位NM。
