序号 |
零件 名称 |
灰铸铁 |
铸钢 |
不锈钢 |
超低碳不锈钢 |
||
Z |
C |
P |
R |
PL |
RL |
||
1 |
阀体、阀盖 |
HT250 |
WCB |
CF8 |
CF8M |
CF3 |
CF3M |
2 |
衬里层/阀盖 |
衬硬橡胶(NR)FEP(F46)PCTFE(F3)PFA(可溶性聚四氟乙烯) |
|||||
3 |
轴、阀瓣(板) |
1 Cr13/35WCB 1Cr18Ni9/CF8 00Cr17Ni14Mo2/CF3M |
|||||
4 |
螺栓 |
35 |
35 |
1Cr17Ni2 |
1Cr17Ni2 |
1Cr18Ni9Ti |
1Cr18Ni9Ti |
5 |
螺母 |
45 |
45 |
0Cr18Ni9 |
0Cr18Ni9 |
0Cr18Ni9 |
0Cr18Ni9 |

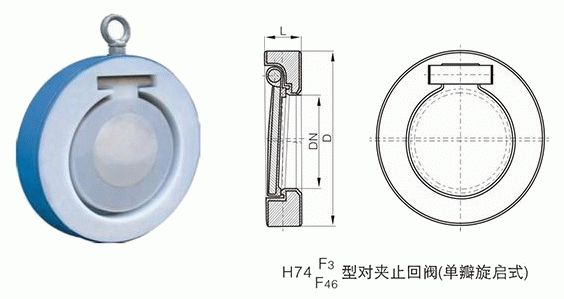

对夹式衬氟止回阀外形结构图:
对夹式衬氟止回阀连接尺寸:
公称通径 |
PN0.6(Mpa) |
PN1.0/1.6(Mpa) |
PN2.5 (Mpa) |
||||||
DN |
L |
D(kg) |
W(kg) |
L |
D |
W(kg) |
L |
D |
W(kg) |
40 |
33 |
80 |
1.0 |
33 |
85/73 |
1.2 |
33 |
73 |
1.4 |
50 |
43 |
90 |
1.1 |
43 |
100/92 |
1.3 |
43 |
92 |
1.5 |
65 |
46 |
110 |
1.3 |
46 |
120/105 |
1.6 |
46 |
105 |
2.0 |
80 |
46 |
125 |
2.5 |
46 |
135/127 |
3.0 |
46 |
127 |
3.8 |
100 |
52 |
145 |
4.8 |
52 |
155/157 |
5.4 |
52 |
157 |
6.3 |
150 |
56 |
200 |
6.5 |
56 |
210/216 |
7.8 |
56 |
216 |
8.8 |
200 |
60 |
255 |
8 |
60 |
265/270 |
10 |
60 |
270 |
12 |
250 |
68 |
310 |
15 |
68 |
320/324 |
18 |
68 |
324 |
20 |
300 |
78 |
362 |
25 |
78 |
368/381 |
30 |
78 |
381 |
32 |
350 |
78 |
412 |
36 |
78 |
428/423 |
41 |
78 |
413 |
45 |
400 |
102 |
462 |
46 |
102 |
482/470 |
55 |
102 |
470 |
60 |
450 |
114 |
518 |
68 |
114 |
532/533 |
78 |
114 |
533 |
85 |
500 |
127 |
568 |
81 |
127 |
585/584 |
90 |
127 |
584 |
98 |
